Spare parts ordering for Deutsche Telekom Phones
Information for ordering material for self-repair

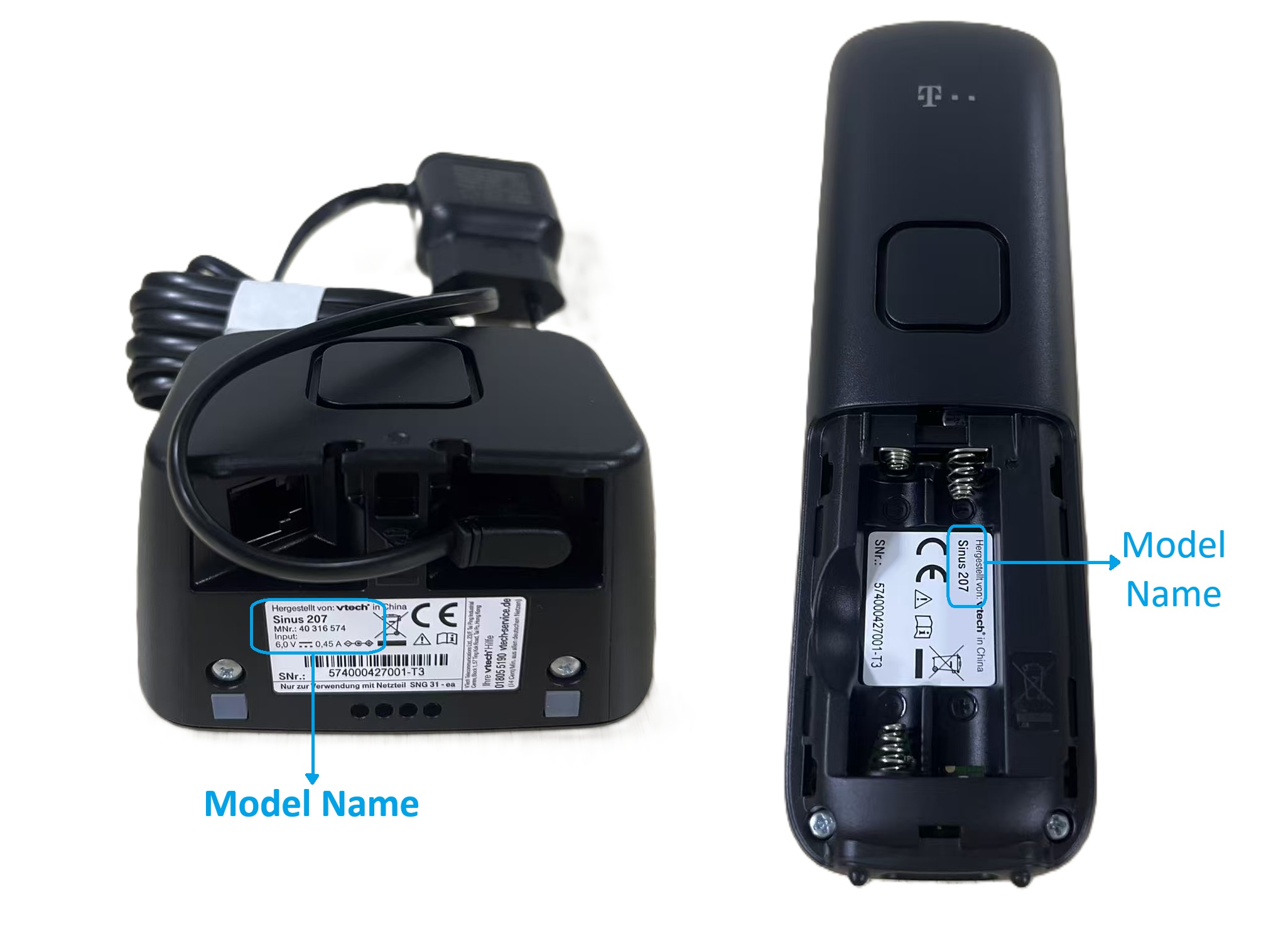

Your handset has a device label that includes important information such as the model name or the model number.
For each spare part, we charge a flat fee of €14.99* including VAT and shipping within the EU. The payment for your spare parts order can only be made via PayPal.
For ordering spare parts and details about the payment please contact:
Telephone Hotline for Speedphone and Sinus products from Deutsche Telekom with the label “Manufactured by VTech”
+49 (0) 800 330 110 3
By phone: Monday – Wednesday and Friday from 9:00 a.m. to 4:00 p.m., and Thursday until 6:00 p.m. (except on public holidays observed nationwide in Germany)
E-mail: telekom-support@gigaset.com
* Please note that the prices listed include German value added tax. These gross prices may vary depending on the country.
| Model | LCD | Microphone | Speaker | Battery | Battery cover | Adapter | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| €14.99 | €14.99 | €14.99 | €14.99 | €14.99 | €14.99 | |||||||
| Material | Order/Part number | Material | Order/Part number | Material | Order/Part number | Material | Order/Part number | Material | Order/Part number | Material | Order/Part number | |
| Sinus 207 | LCD module 32x38 | 43-023085-100-101 | Microphone | 28-004028-001-100 | Speaker | 28-002043-000-100 | NiMH, 1.2 V, 750 mAh, AAA | 29-112075-201-101 | BLACK | 30-017412-011-100 | AC100-240V;DC6V;450MA | 26-460045-1EU-1C3 |
| Sinus A 207 | LCD module 32x38 | 43-023085-100-101 | Microphone | 28-004028-001-100 | Speaker | 28-002043-000-100 | NiMH, 1.2 V, 750 mAh, AAA | 29-112075-201-101 | BLACK | 30-017412-011-100 | AC100-240V;DC6V;600MA | 26-460060-1EU-138 |
| Sinus 207 Pack | LCD module 32x38 | 43-023085-100-101 | Microphone | 28-004028-001-100 | Speaker | 28-002043-000-100 | NiMH, 1.2 V, 750 mAh, AAA | 29-112075-201-101 | BLACK | 30-017412-011-100 | - | - |
| Sinus PA 207 plus 1 | LCD module 32x38 | 43-023085-100-101 | Microphone | 28-004028-001-100 | Speaker | 28-002043-000-100 | NiMH, 1.2 V, 750 mAh, AAA | 29-112075-201-101 | BLACK | 30-017412-011-100 | AC100-240V;DC6V;600MA | 26-460060-6EU-128 |
| Sinus 12 (black) | 2" TFT LCD | 43-026032-009-100 | Microphone | 28-001057-025-100 | Speaker | 28-001419-000-100 | NiMH, 1.2 V, 850 mAh, AAA | 29-112085-201-100 | BLACK | 30-019059-010-100 | AC100-240V;DC6V;450MA | 26-460045-6EU-124 |
| Sinus 12 (white) | 2" TFT LCD | 43-026032-009-100 | Microphone | 28-001057-025-100 | Speaker | 28-001419-000-100 | NiMH, 1.2 V, 850 mAh, AAA | 29-112085-201-100 | White | 30-019059-040-100 | AC100-240V;DC6V;450MA | 26-460045-6EU-125 |
| Sinus A12 (black) | 2" TFT LCD | 43-026032-009-100 | Microphone | 28-001057-025-100 | Speaker | 28-001419-000-100 | NiMH, 1.2 V, 850 mAh, AAA | 29-112085-201-100 | BLACK | 30-019059-010-100 | AC100-240V;DC6V;600MA | 26-460060-6EU-128 |
| Sinus A12 (white) | 2" TFT LCD | 43-026032-009-100 | Microphone | 28-001057-025-100 | Speaker | 28-001419-000-100 | NiMH, 1.2 V, 850 mAh, AAA | 29-112085-201-100 | White | 30-019059-040-100 | AC100-240V;DC6V;600MA | 26-460060-6EU-127 |
| Speedphone 12 (black) | 2" TFT LCD | 43-026032-009-100 | Microphone | 28-001057-025-100 | Speaker | 28-001419-000-100 | NiMH, 1.2 V, 850 mAh, AAA | 29-112085-201-100 | BLACK | 30-019059-000-100 | AC100-240V;DC6V;450MA | 26-460045-6EU-124 |
| Speedphone 12 (white) | 2" TFT LCD | 43-026032-009-100 | Microphone | 28-001057-025-100 | Speaker | 28-001419-000-100 | NiMH, 1.2 V, 850 mAh, AAA | 29-112085-201-100 | White | 30-019059-030-100 | AC100-240V;DC6V;450MA | 26-460045-6EU-125 |
| Speedphone 12 (petrol) | 2" TFT LCD | 43-026032-009-100 | Microphone | 28-001057-025-100 | Speaker | 28-001419-000-100 | NiMH, 1.2 V, 850 mAh, AAA | 29-112085-201-100 | BLUE | 30-019059-060-100 | AC100-240V;DC6V;450MA | 26-460045-6EU-124 |
| Speedphone 32 | 2" TFT LCD | 43-026032-004-101 | Microphone | 28-001057-025-100 | Speaker | 28-001419-001-100 | NiMH, 1.2 V, 850 mAh, AAA | 29-112085-201-100 | BLACK | 30-015608-030-100 | AC100-240V;DC6V;450MA | 26-460045-6EU-124 |
| Sinus A32 | 2" TFT LCD | 43-026032-004-101 | Microphone | 28-001057-025-100 | Speaker | 28-001419-001-100(HS) 28-001264-008-100(BS) |
NiMH, 1.2 V, 850 mAh, AAA | 29-112085-201-100 | BLACK | 30-015608-030-100 | AC100-240V;DC6V;600MA | 26-460060-6EU-128 |
| Speedphone 52 | 2.2" TFT LCD | 43-026015-002-104 | Microphone | 28-004005-001-100 | Speaker | 28-002061-001-100 | NiMH, 1.2 V, 850 mAh, AAA | 29-112085-201-100 | BLACK | 30-019285-000-100 | AC100-240V;DC6V;450MA | 26-460045-6EU-124 |
